Description

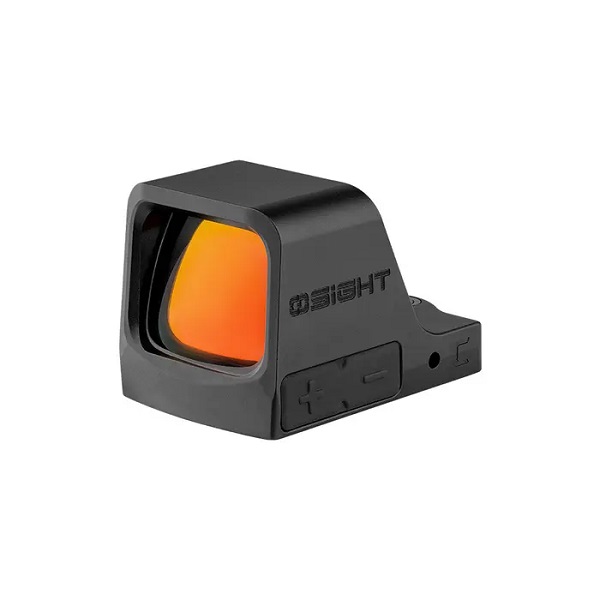

Osight C Open Reflex Optic with Replaceable Side-Loading Battery

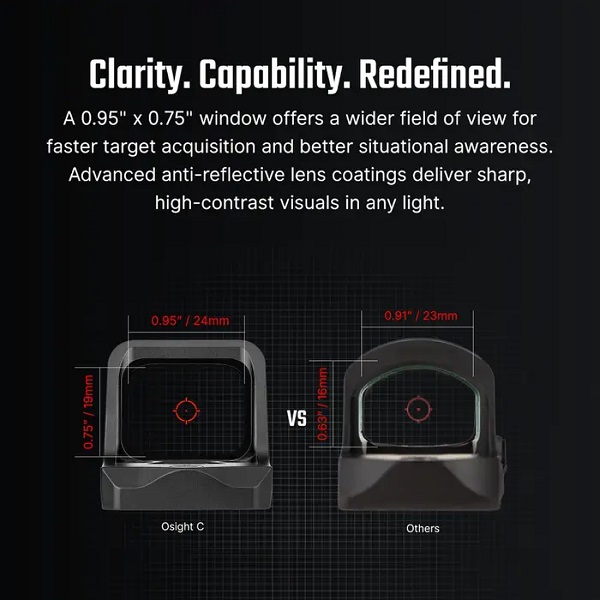

• Large Field of View with Multi-Coated Lens
  • Engineered with advanced anti-reflective lens coatings, this sight maximizes light transmission for unmatched clarity, allowing you to quickly lock onto targets with pinpoint precision. The 0.95” × 0.75” window delivers a greater sight picture, ensuring faster target acquisition and quicker follow-up shots.

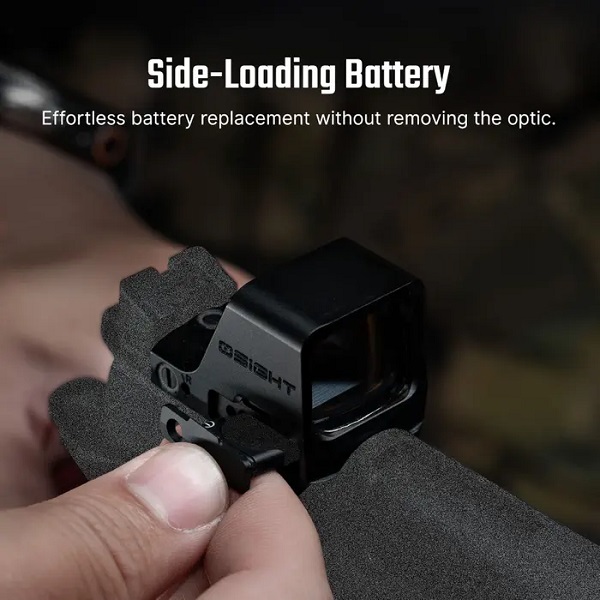

• Side-Loading Battery
  • Effortless battery replacement without removing the optic ensures hassle-free re-zeroing. A high-end CR1632 battery offers easy accessibility while maintaining steady performance.
• 3 MOA Dot + 32 MOA Circle
  • Switching between dot-and-circle, dot-only, or circle-only reticles, you can tailor your aiming solution to any shooting scenario. The sharp and bright dot-and-circle reticle provides a cutting-edge aiming experience.

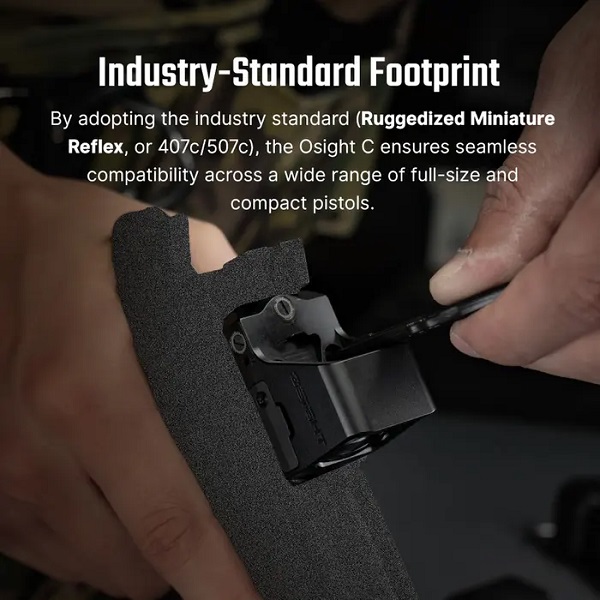

• Most Common Footprint
  • By adopting the de facto industry standard (Ruggedized Miniature Reflex, or 407c/507c footprint), Osight C is a versatile addition to many full-size and compact pistols. Osight picatinny mounts add even more possibilities with both high and low options that will work with most rifle applications.
• Motion Sensor Function
  • Motion sensor activates Osight C at the slightest movement, and powers down after 3 minutes of inactivity to conserve battery

Materials

• Optic Material
  • 7075 Aluminum

General Data

• Adjustment
  • 1 MOA per Click
• Reticle Type
  • 3 MOA Dot & 32 MOA Circle
• Multi-Coatings
  • Yes
• Motion Sensor Function
  • Yes
• Torque Specification(s)
  • M3 15in-lbs Per Screw; 4-40 15in-lbs Per Screw; 6-32 17in-lbs Per Screw; 6-40 17in-lbs Per Screw;
• Memory Function
  • Yes
• Working Temperature (Optic)
  • -22°F to 140°F (-30°C to 60°C)
• Storage Temperature (Optic)
  • -40°F to 158°F (-40°C to 70°C)
• Power Source
  • CR1632 battery
• Weight
  • 1.77 × 1.18 × 1.18 in; 45 × 30 × 30 mm
• Max. Runtime
  • 100,000 H (Mode 3 with dot only)
• Unlimited Eye Relief
  • Yes

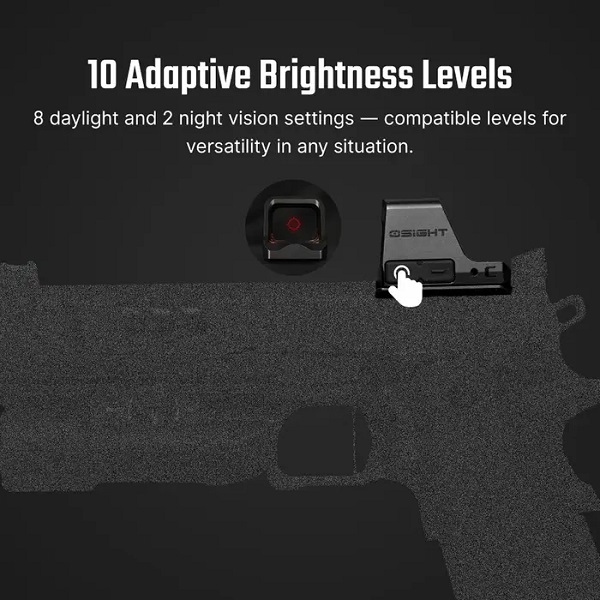

• Brightness Settings
  • 8 DL & 2 NV
• Light Wavelength
  • 660 nm
• Reticle Color
  • Red
• Magnification
  • 1x
• Parallax Free
  • Yes
• W&E Travel Range
  • ± 45 MOA

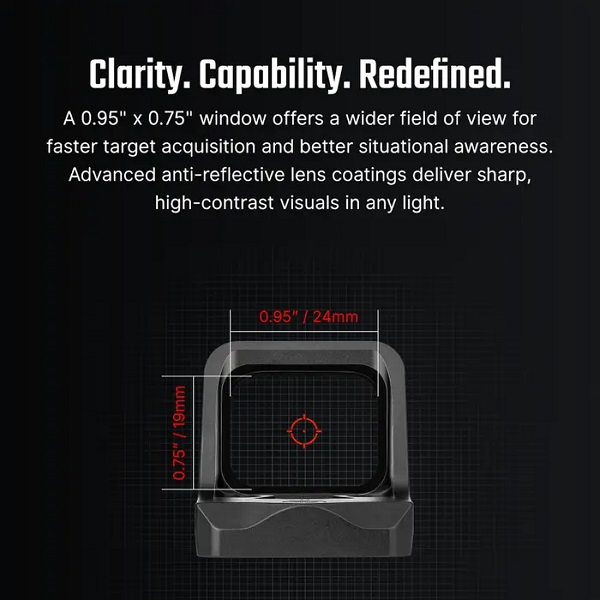

• Window Size
  • 0.95 × 0.75 in; 24 × 19 mm

Technical Characteristics

• Waterproof
  • IPX6
• Dimensions  (Length x Width x Height)
  • 1.48 oz / 42 g
• Use/Applications
  • Military, Law Enforcement, Duty Use, Competitive Shooting,   Personal Defense
• Packaging
  • Carton Box

Package Contents

• Optic (CR1632 battery included) × 1
• Osight C Screw Kit x 1
• Cleaning Cloth × 1
• User Manual  × 1
• Osight Sticker x1
• Adjustment Tool × 1
• Spare Battery Compartment Screw x 2
• READ ME Card × 1
• Safety Warnings x1
