Description

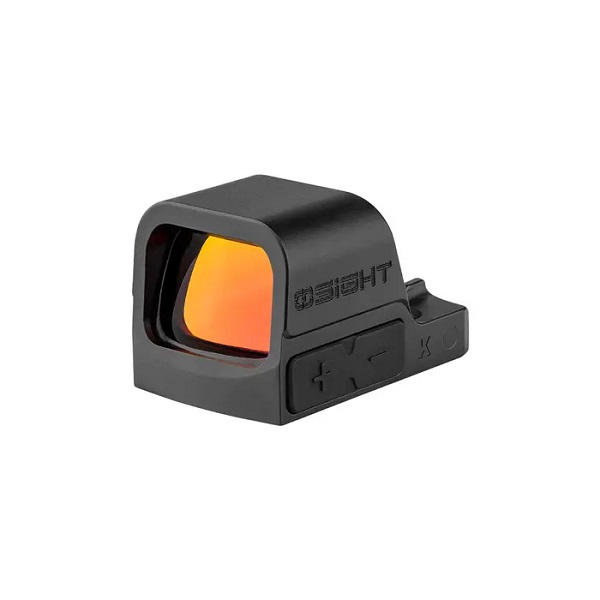

Osight K Open Reflex Optic with Replaceable Side-Loading Battery

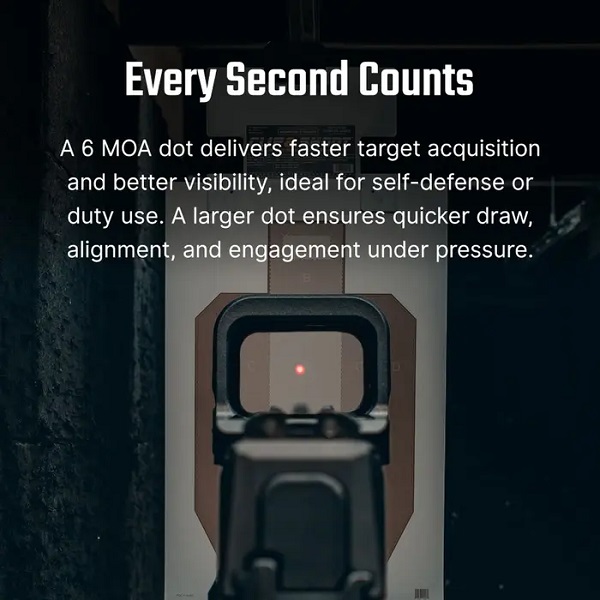

• 6 MOA Dot
  • A 6-MOA dot provides quicker target acquisition and better visibility, making it ideal for self-defense and during high-stress situations. A larger dot adds consistency to presentation and target alignment, perfect for rapid engagements from the holster.

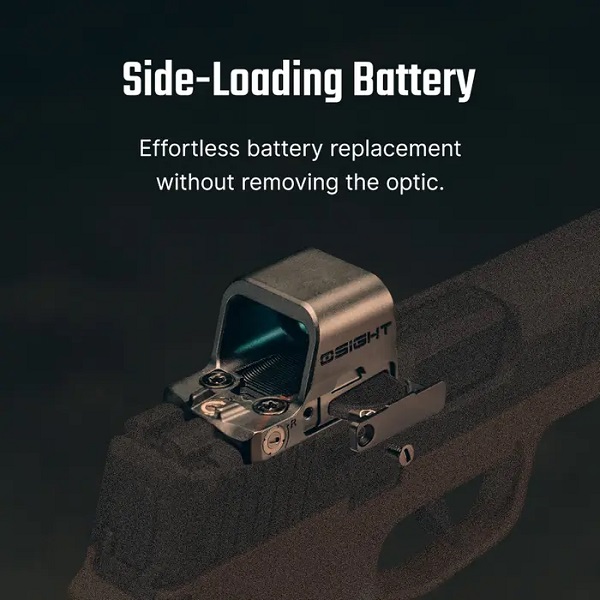

• Side-Loading Battery
  • Effortless battery replacement without removing the optic ensures hassle-free re-zeroing. A high-end CR1620 battery offers easy accessibility while maintaining steady performance.

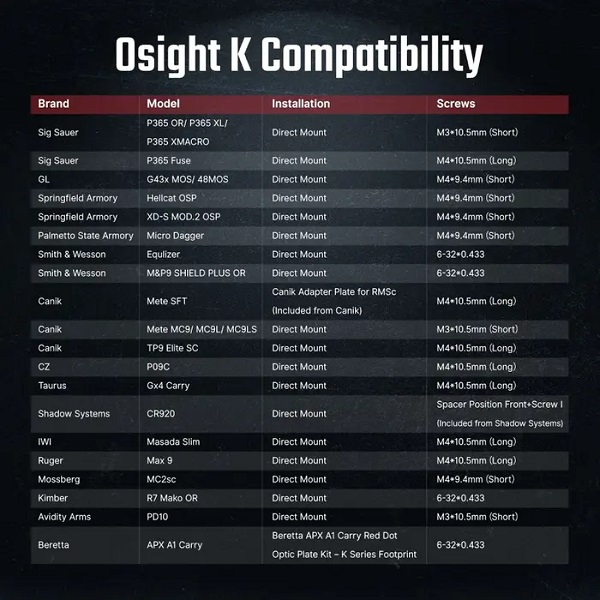

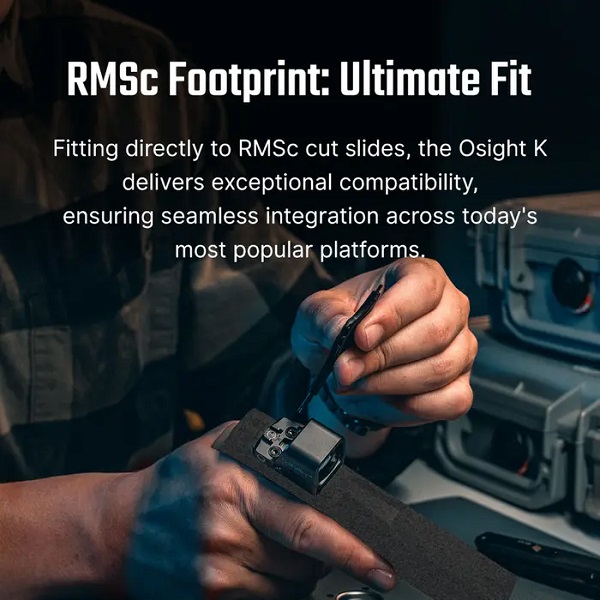

• RMSc Footprint
  • Fitting directly to your optics-ready slides, the compact optic delivers exceptional compatibility, ensuring seamless integration across a multitude of builds.

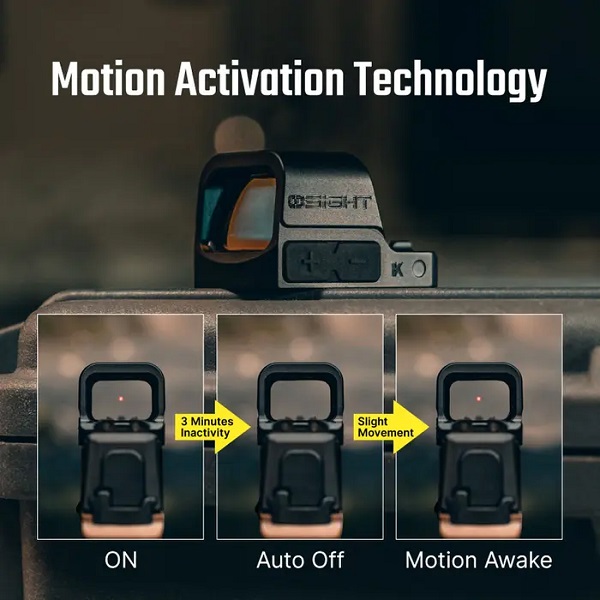

• Motion Sensor Function
  • Motion sensor activates Osight K at the slightest movement, and powers down after 3 minutes of inactivity to conserve battery.

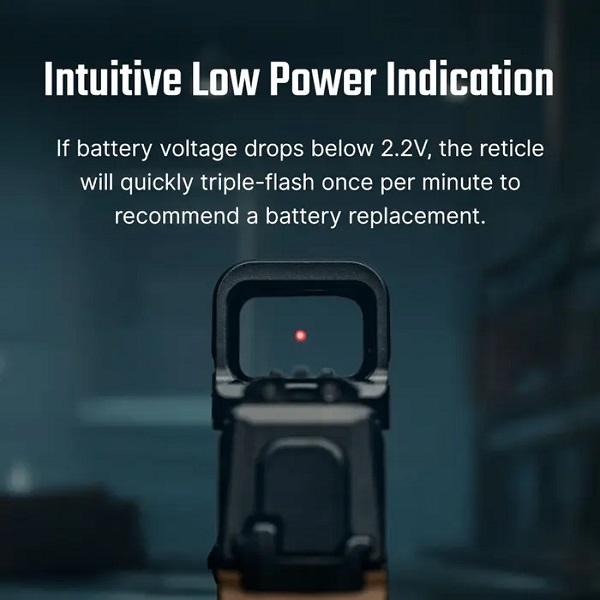

• Low Power Indication
  • If battery voltage drops below 2.2V, the reticle will quickly triple-flash once per minute to recommend an imminent battery replacement.

Materials

• Optic Material
  • 7075 Aluminum

General Data

• Adjustment
  • 1 MOA per Click
• Reticle Type
  • 6 MOA Dot

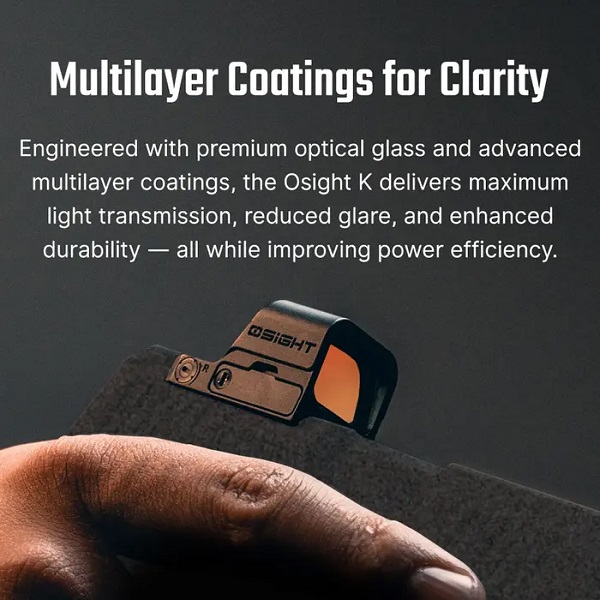

• Multi-Coatings
  • Yes
• Motion Sensor Function
  • Yes
• Torque Specification(s)
  • M3 15in-lbs Per Screw; M4 17in-lbs Per Screw; 6-32 17in-lbs Per Screw; 6-40 17in-lbs Per Screw;
• Memory Function
  • Yes
• Power Source
  • CR1620 battery
• Weight
  • 1.02 oz / 29 g
• Max. Runtime
  • 63,000 H (Mode 3)
• Unlimited Eye Relief
  • Yes

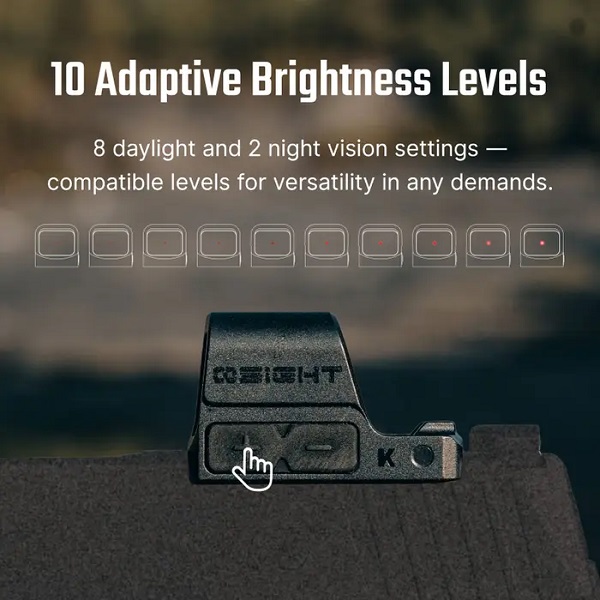

• Brightness Settings
  • 8 DL & 2 NV
• Light Wavelength
  • 660 nm
• Reticle Color
  • Red
• Magnification
  • 1x
• Parallax Free
  • Yes
• W&E Travel Range
  • ± 35 MOA
• Window Size
  • 0.83 × 0.55 in (21 × 14 mm)

Technical Characteristics

• Waterproof
  • IPX6
• Storage Temperature
  • -40°F to 158°F (-40°C to 70°C)
• Dimensions (Length x Width x Height)
  • 1.59 × 0.98 × 0.98 in  40.4 × 25 × 25 mm
• Working Temperature
  • -22°F to 140°F (-30°C to 60°C)
• Packaging
  • Carton Box
• Use
  • Concealed Carry, Self-defense, Home Protection, Everyday Carry

Package Contents

• Optic (CR1620 battery included) × 1
• Adjustment Tool × 1
• READ ME Card × 1
• Osight K Screw Kit × 1
• Spare Battery Compartment Screw × 2
• Cleaning Cloth × 1
• Safety Warnings ×1
• User Manual  × 1
• Osight Sticker × 1
