Description

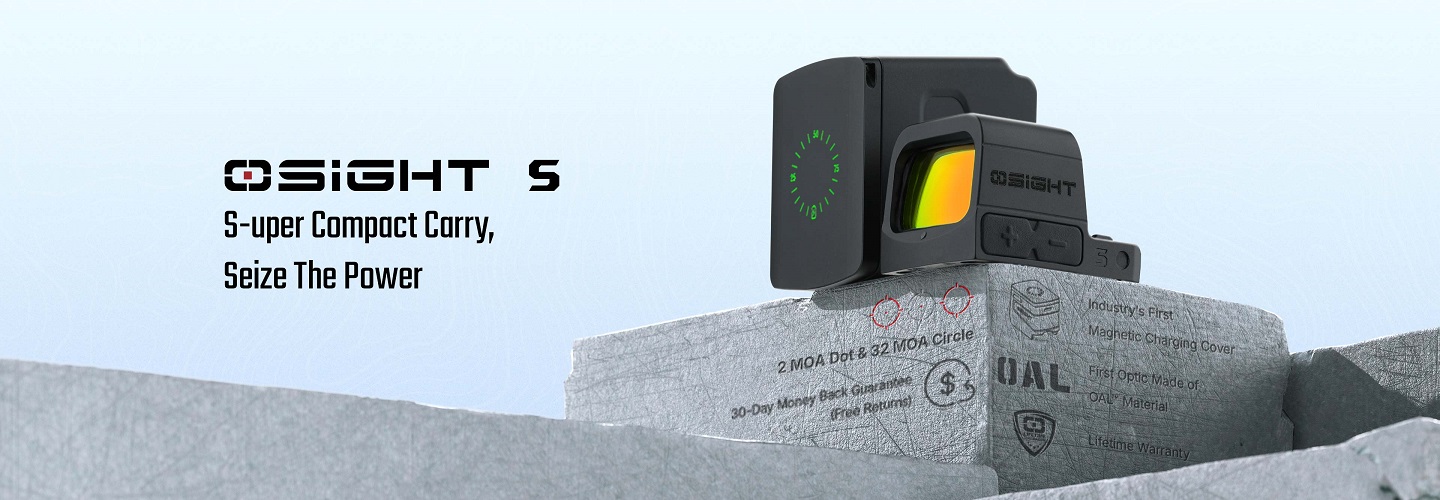

Osight S 2 MOA Dot & 32 MOA Circle with OAL Material

S-uper Compact, S-uper Power, S-uper Precision!

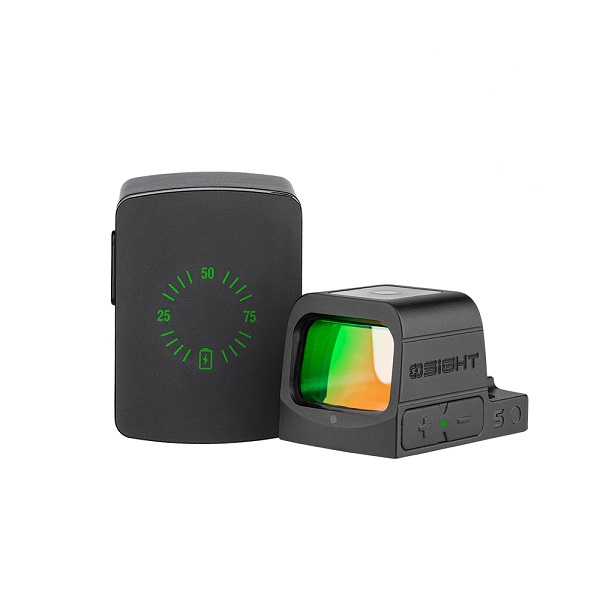

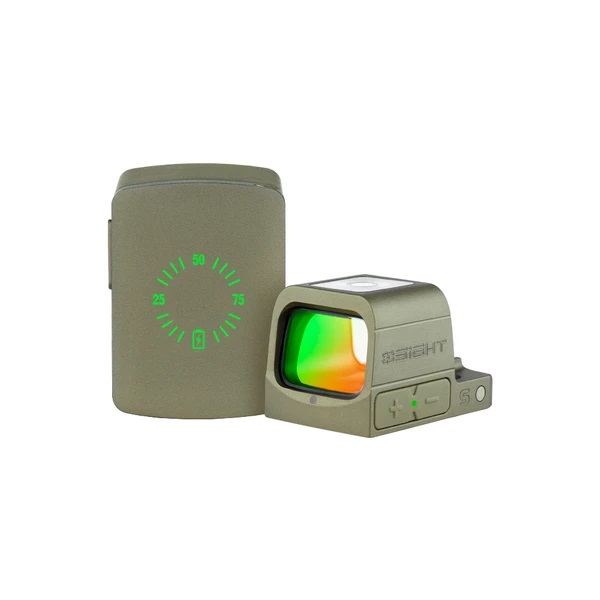

• Industryʼs First Magnetic Charging Cover
  • The Osight S boasts a pioneering Magnetic Charging Cover featuring a battery display that reveals the real-time battery levels for both the cover and the optic, making uncertainty certain. (The magnetic charging cover can fully charge Osight S 3 times, with each charge completed in 1.5 hours.)

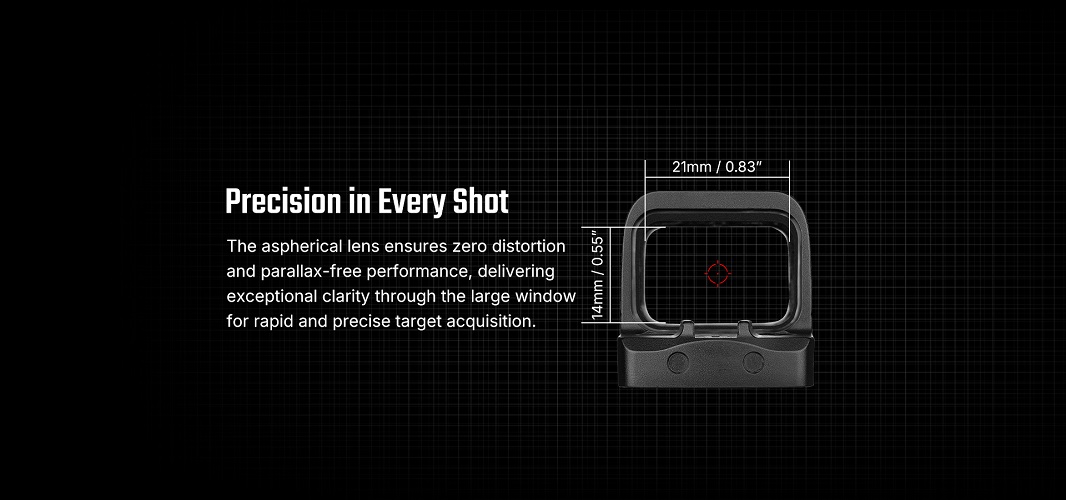

• Enclosed Optic with Aspherical Lens
  • Designed with a fully sealed system, the optic offers unmatched protection against environmental elements. Its aspherical lens ensures zero distortion and parallax-free performance, delivering exceptional clarity through the large window for rapid and precise target acquisition.
• Multi-reticle System (2 MOA Dot & 32 MOA Circle)
  • Switching between dot-and-circle, dot-only, or circle-only reticles, you can tailor your aiming solution to any usage scenario. The sharp and bright dot-and-circle reticle provides a cutting-edge aiming experience (suitable for outdoor activities, shooting training, and night patrols).

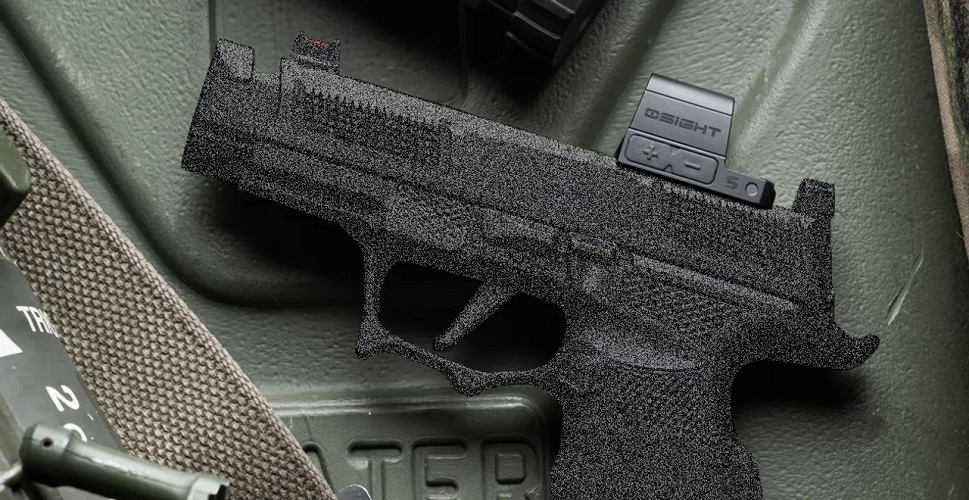

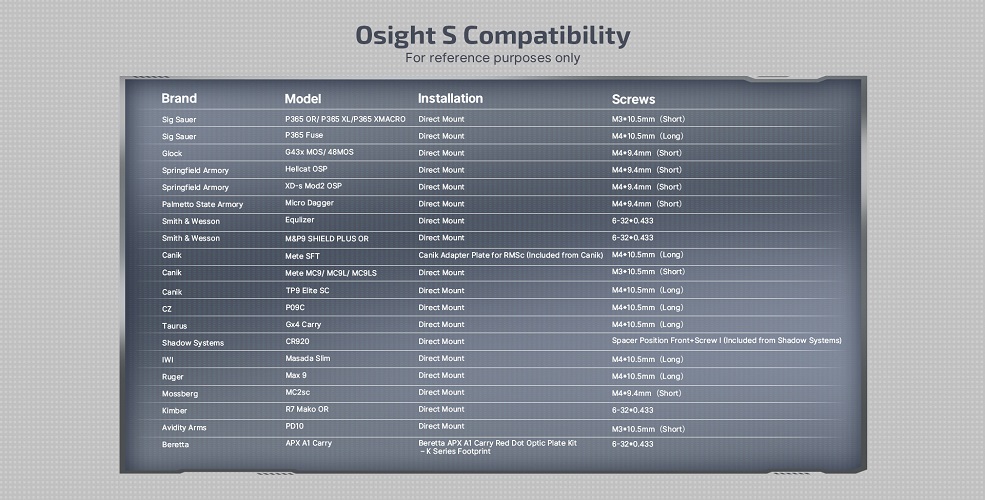

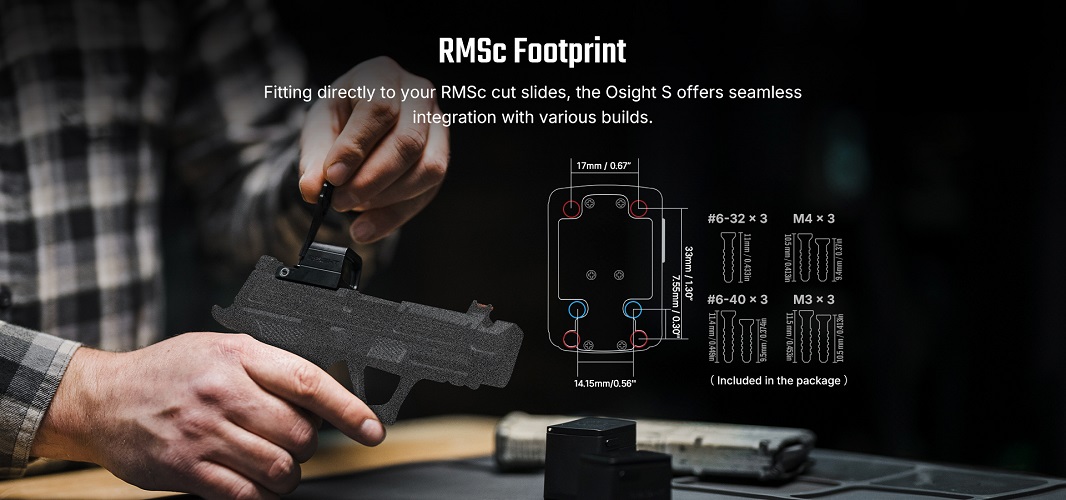

• Universal RMSc Footprint
  • Fitting directly to your optics-ready slides, the compact optic delivers exceptional compatibility, ensuring seamless integration across a multitude of builds.
• First Optic Made of OAL™ Material
  • The OAL™ housing is tough, strong, and nearly as lightweight as 7075 aluminum, with a Level III anodized finish that provides superior impact and corrosion resistance for lasting durability. Osight models have been field-tested with over 100,000 rounds, maintaining reliability and holding zero throughout.

MATERIALS

• Optic Material
  • OAL™
• Charging Cover Material
  • AL6061 + PC

GENERAL DATA

• Charging Type
  • Optic
    • Magnetic Charging
  • Charging Cover
    • USB-C Charging
• Adjustment
  • 1 MOA per Click
• Reticle Type
  • 2 MOA Dot & 32 MOA Circle
• Multi-Coatings
  • Yes
• Light Sensor Technology
  • Yes
• Motion Sensor Function
  • Yes
• Power Source
  • Optic
    • Built-in 46mAh Rechargeable Lithium Polymer Battery
  • Charging Cover
    • Built-in 220mAh Rechargeable Lithium Polymer Battery

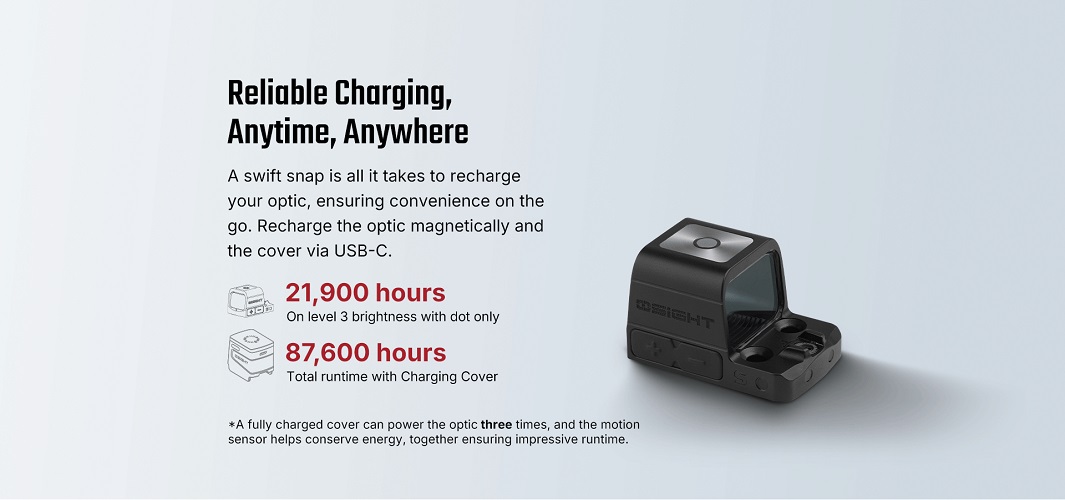

• Max. Runtime
  • 21,900 Hours On level 3 briqhtness with dot only
• Unlimited Eye Relief
  • Yes
• Brightness Settings
  • 10 DL & 2 NV
• Light Wavelength
  • 650 nm
• Reticle Color
  • Red
• Magnification
  • 1x
• Parallax Free
  • Yes
• W&E Travel Range
  • ± 35 MOA
• Torque Specification
  • M3 15in-lbs Per Screw; M4 17in-lbs Per Screw; 6-32 17in-lbs Per Screw; 6-40 17in-lbs Per Screw;
• Window Size
  • 0.83 x 0.55 in

TECHNICAL CHARACTERISTICS

• Waterproof
  • Optic
    • IPX7
  • Charging Cover
    • IPX4
• Weight
  • Optic
    • 0.97 oz (27.5 g)
  • Charging Cover
    • 1.16 oz (33 g)
• Packaging
  • Magnetic Closure Box
• Use
  • Concealed carry, self-defense, home defense, training
• Dimensions (Length x Width x Height)
  • Optic
    • 1.59 x 0.98 x 0.97 in
  • Charging Cover
    • 1.67 x 1.18 x 1.48 in
• Storage Temperature
  • -20~60℃（-4~140°F）
• Working Temperture
  • 0~45℃（32~113°F）

PACKAGE CONTENTS

• Optic × 1
• Charging Cover × 1
• Adjustment Tool × 1
• USB-C Charging Cable × 1
• Osight S Screw Kit x 1
• Pouch × 1
• Cleaning Cloth × 1
• Compatibility Card × 1
• Zeroing Instructions Card × 1
• User Manual × 1
