Description

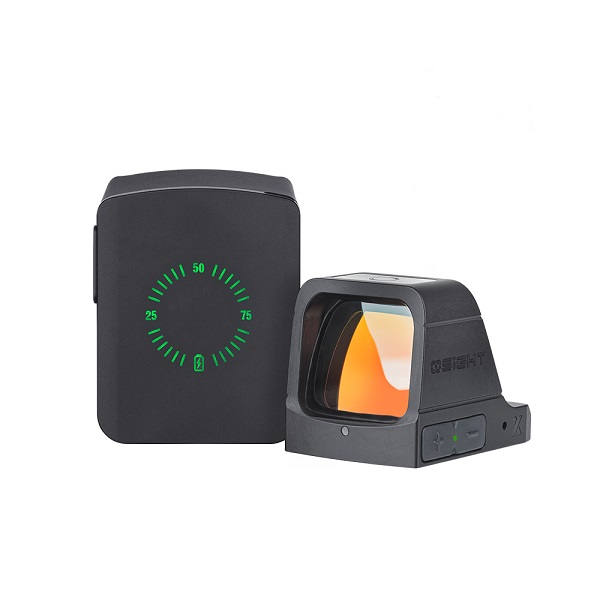

Osight X 3 MOA Dot & 32 MOA Circle with OAL Material

• Multi-reticle System (3 MOA Dot & 32 MOA Circle)
  • Switching between dot-and-circle, dot-only, or circle-only reticles, you can tailor your aiming solution to any usage scenario. The sharp and bright dot-and-circle reticle provides a cutting-edge aiming experience (suitable for outdoor activities, shooting training, and night patrols).

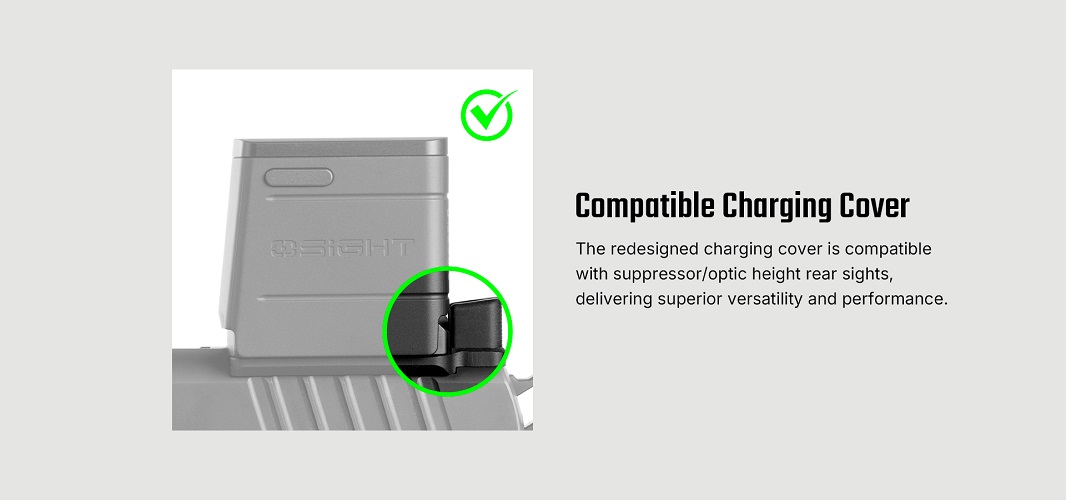

• Industryʼs First Magnetic Charging Cover
  • The Osight X boasts a pioneering Magnetic Charging Cover featuring a battery display that reveals the real-time battery levels for both the cover and the optic, making uncertainty certain. (The magnetic charging cover can fully charge Osight X 3 times, with each charge completed in 2.5 hours.)
• Large Field of View with Multi-Coated Lens
  • The advanced anti-reflective lens coatings maximize light transmission for impressive clarity, enabling you to swiftly capture targets, with precision and confidence.

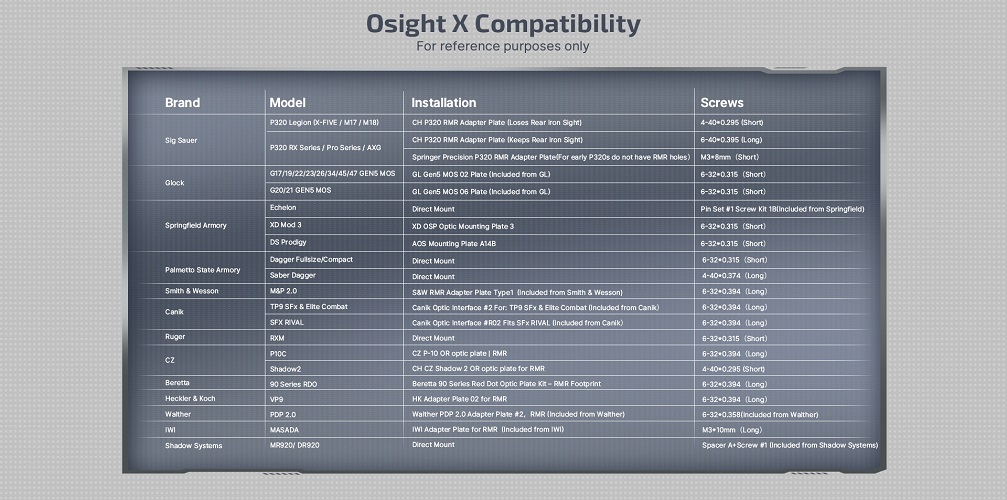

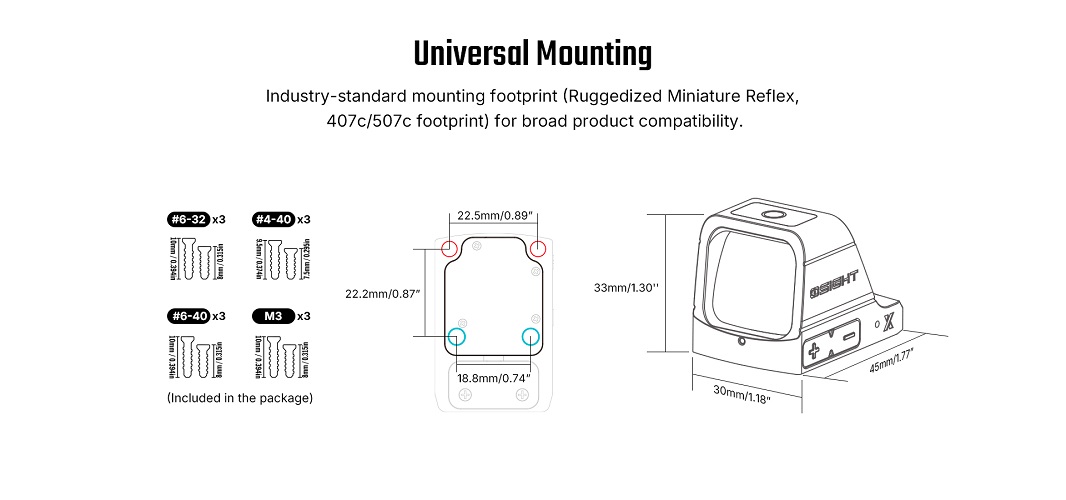

• Most Common Footprint
  • By adopting the industry-standard mounting footprint (Ruggedized Miniature Reflex, 407c/507c footprint) for optic cuts, the Osight X ensures versatility and ease of integration.
• First Optic Made of OAL™ Material
  • The OAL™ housing is tough, strong, and nearly as lightweight as 7075 aluminum, with a Level III anodized finish that provides superior impact and corrosion resistance for lasting durability. Osight models have been field-tested with over 100,000 rounds, maintaining reliability and holding zero throughout.

MATERIALS

• Optic Material
  • OAL
• Charging Cover Material
  • AL6061+PC

GENERAL DATA

• Charging Type
  • Optic
    • Magnetic Charging
  • Charging Cover
    • USB-C Charging
• Adjustment
  • 1 MOA per Click
• Reticle Type
  • 3 MOA Dot & 32 MOA Circle
• Multi-Coatings
  • Yes

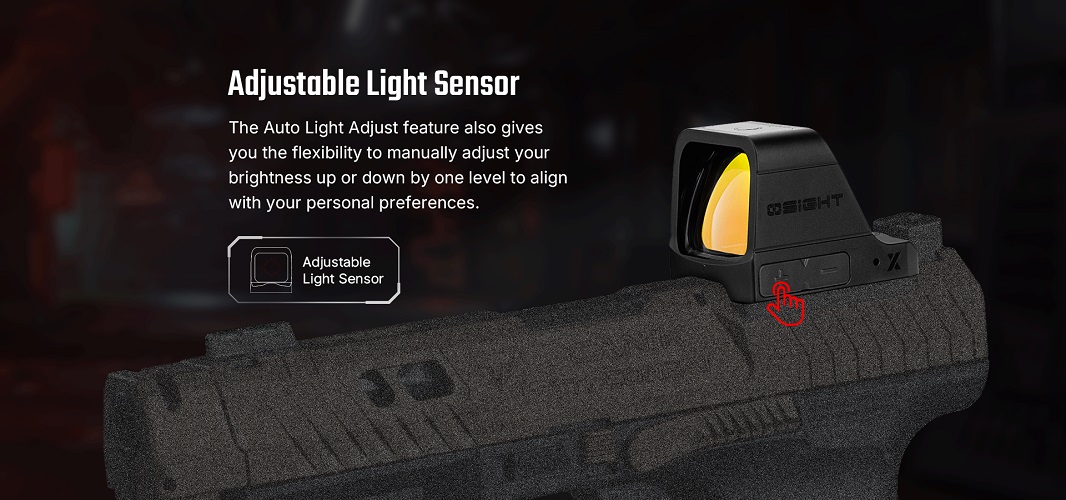

• Light Sensor Technology
  • Yes
• Motion Sensor Function
  • Yes
• Power Source
  • Optic
    • Built-in 170mAh Rechargeable Lithium Polymer Battery
  • Charging Cover
    • Built-in 800mAh  Rechargeable Lithium Polymer Battery
• Max. Runtime
  • 57,000 hours on level 3 brightness with dot only
• Unlimited Eye Relief
  • Yes
• Brightness Settings
  • 10 DL & 2 NV
• Light Wavelength
  • 660 nm
• Reticle Color
  • Red
• Magnification
  • 1x
• Parallax Free
  • Yes
• W&E Travel Range
  • ± 45 MOA
• Torque Specification
  • M3 15 in-lbs Per Screw; 4-40 15 in-lbs Per Screw; 6-32 17 in-lbs Per Screw; 6-40 17 in-lbs Per Screw;

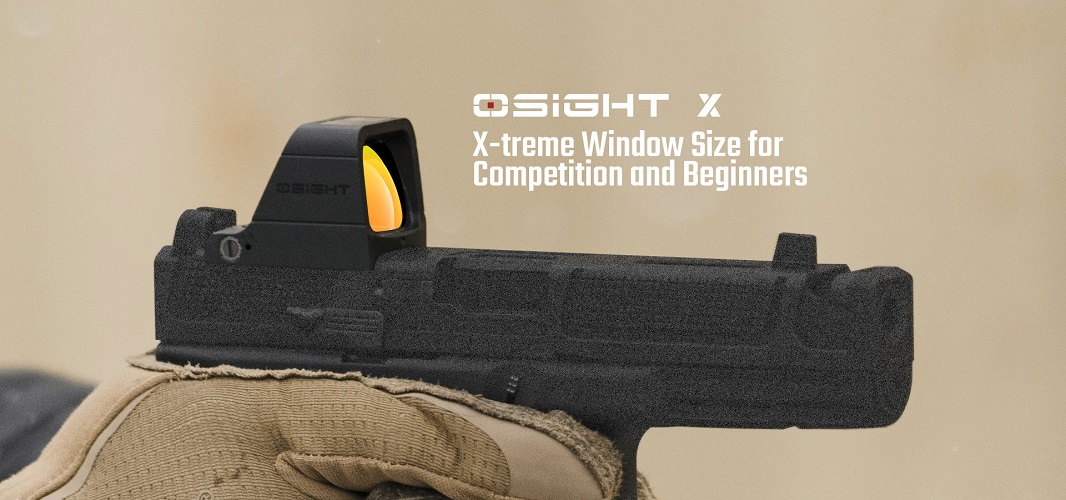

• Window Size
  • 0.94 * 0.85 in (24 * 21.5mm)

TECHNICAL CHARACTERISTICS

• Waterproof
  • Optic
    • IPX6
  • Charging Cover
    • IPX4
• Weight
  • Optic
    • 1.62 oz (46g) (Including Battery)
  • Charging Cover
    • 1.76 oz (50 g)
• Packaging
  • Magnetic Closure Box
• Use
  • Competition, training, self-defense, home defense, and on duty
• Dimensions (Length x Width x Height)
  • Optic
    • 1.77 * 1.18 * 1.30 in (45 * 30 * 33 mm)
  • Charging Cover
    • 1.85 * 1.38 * 1.73 in (47 * 35 * 44 mm)
• Storage Temperature
  • -20~60℃ (-4~140°F)
• Working Temperture
  • 0~45℃ (32~113°F)

PACKAGE CONTENTS

• Optic × 1
• Charging Cover × 1
• Adjustment Tool × 1
• USB-C Charging Cable × 1
• Compatibility Card × 1
• Pouch × 1
• Osight X Screw Kit x 1
• Cleaning Cloth × 1
• Zeroing Instructions Card × 1
• User Manual  × 1
