Description

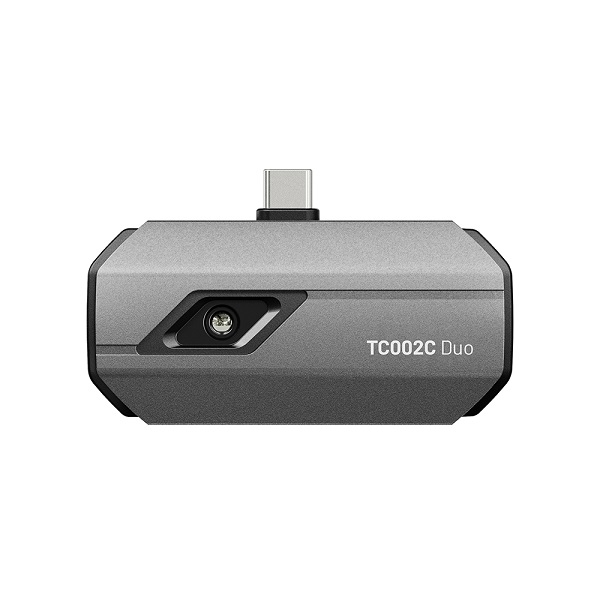

TC002C Duo Thermal Imager

• Wide Applications
  • Measure temperature differences safely from up to 16.4 ft (5 m). The TC002C Duo is ideal for home inspectors, HVAC and automotive technicians, electricians, and more. It is also a fun tool for family activities like hide-and-seek or playing with pets.

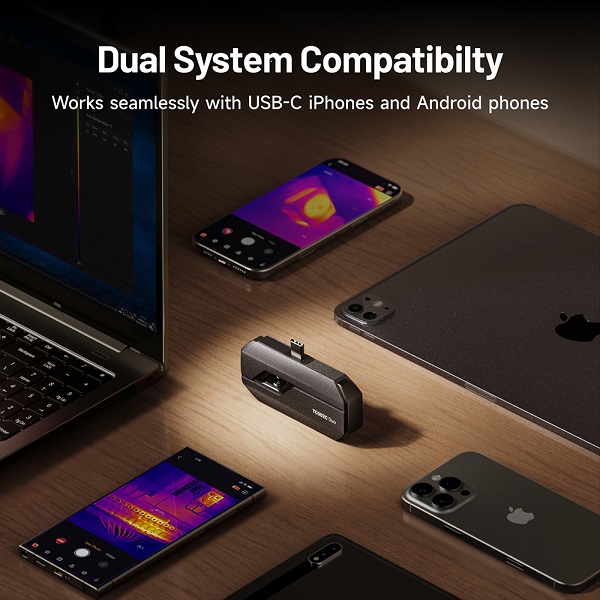

• Universal USB-C Compatibility
  • Seamlessly works with all USB-C smartphones and tablets (iOS, Android & Windows), including the latest Apple and Android models. Note: Not compatible with Mac devices.

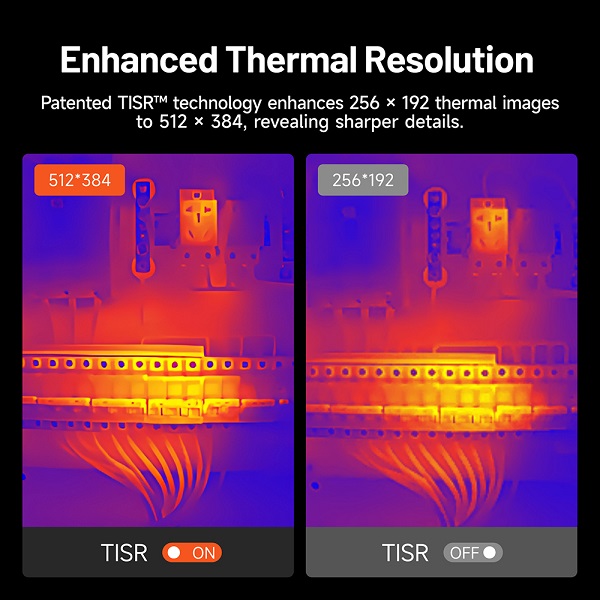

• Super Resolution (TISR)

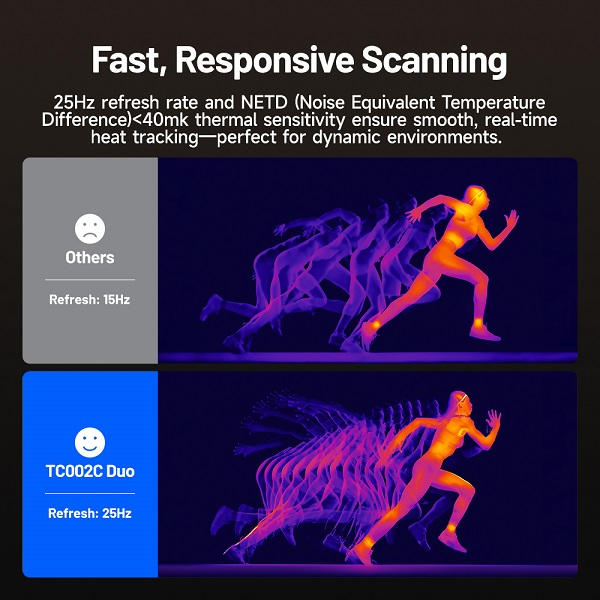

  • Enhanced 256×192 thermal imaging upscales to 512×384 with Patented TISR Technology. Combined with a 25 Hz refresh rate and 40 mK sensitivity, it ensures smooth, detailed, real-time heat tracking in dynamic environments.
• Extensive Temperature Range

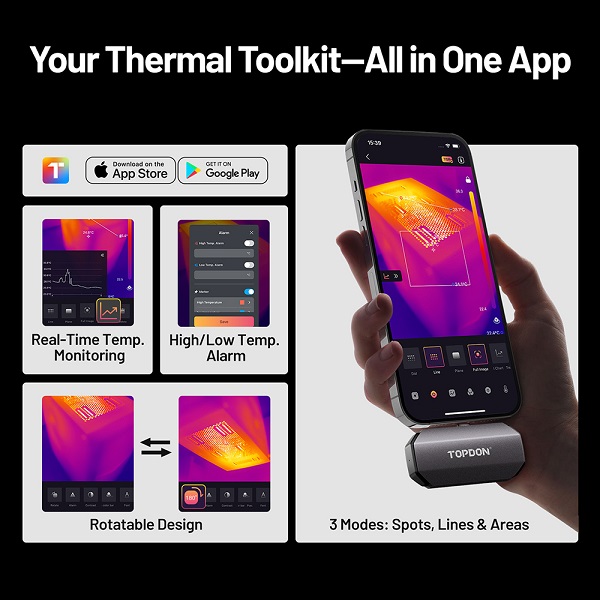

  • Covers -20°C to 550°C (-4℉ to 1022℉) with ±2°C/2% accuracy. View real-time variations with waveform analysis, set custom limits, and use colorful displays. Supports both photo and video recording.
• Compact & Portable
  • Lightweight at just 1.1 oz (30 g), with a slim design (2.8” × 1.7” × 0.55” / 71 × 42 × 14 mm). Easily controlled via the TopInfrared App.

Infrared Image

• IR Resolution
  • 256 x 192 (49,152 pixels)
• NETD
  • <40 mK (@ 25 °C, F#=1.0)
• lmage Frequency
  • 25 Hz
• Pixel Pitch
  • 12 μm
• Focal Length
  • 3.5 mm
• F-number
  • F1.0
• Field of View (FOV)
  • 50° x 37.2°
• Min. Focus Distance
  • 0.2m (0.66 ft)

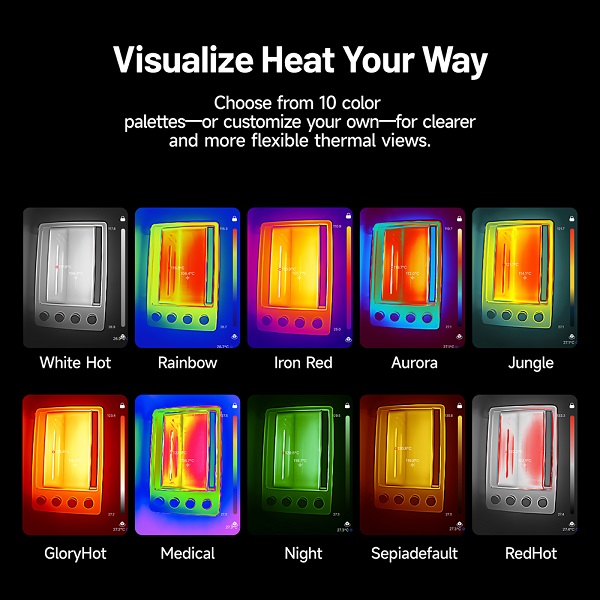

• Color Palettes
  • Iron red, White hot, Black hot, Arctic, Rainbow, Red hot, Medical, Jungle, Golden red, Shimmer, Aureate
• Image Modes
  • Thermal \ PIP
• TISR
  • Support
• Spectral Range
  • 8~14 μm

Measurement and Analysis

• Object Temperature Range
  • -20 ~ 550℃ (-4°F – 1,022°F)
• Accuracy
  • ±2℃ / ±2%
• Measurement Tools
  • Center Spot, Hot Spot, Cold Spot User-definable: 3 dot, 3 line and 3 rectangles.
• Level and Span Mode
  • IP54

General

• System Compatibility
  • iOS & Android & Windows
• Power Consumption
  • 350mw / 0.35w
• Protection Level
  • IP54
• Drop Test Height
  • 1m (3.28 ft)
• Working Temperature Range
  • -10 ~ 50℃ (14°F – 122°F)
• Storage Temperature Range
  • -20 ~ 60℃ (-4°F – 140°F)
• Net Weight
  • 30g (0.06lbs)
• Product Dimensions
  • 71 x 42 x 14 mm (2.8 x 1.6 x 0.5 inches)
• Gross Weight
  • 230g (0.5lbs)
• Packaged Dimensions
  • 140 x 103 x 50 mm (5.5 x 4.0 x 1.9 inches)

Package Contents

• TC002C Duo x 1
• Packing Box x 1
• USB-C to Lightning Cable x 1
• Carrying Bag x 1
• USB-C to USB-C Extension Cable x 1
• Cleaning Cloth x 1
• User Manual x 1
